Contrôleur à rouleau à moteur à courant continu de type D

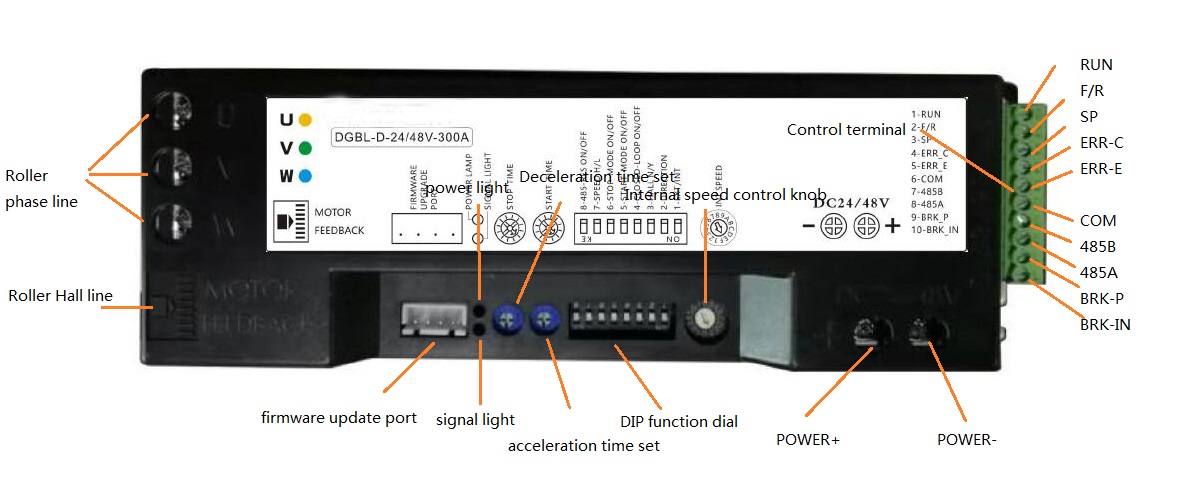

DC motor driven roller controller is also name control card. It is the accessories of motor dirven roller which makes motor driven roller be controlled through the communication control mode, the serial port controls the speed of positive and negative rotation, can flexibly control the motor positive and negative rotation, positive and negative rotation limit, the control mode is simple, safe and reliable, convenient maintenance, convenient operation.

Main Functions of D Type

• Two wire system positive and negative control.

• Speed regulation with 16-speed digital knob

• 0-10V analog voltage stepless speed regulation

• Speed closed-loop support

• Non-inductive operation support

• Quick start time is adjustable

• Stop deceleration time is adjustable

• EBS brake support

• Abnormal alarm output

• Double LED status indicator

• Two-stage speed can be customized (not compatible with stepless speed regulation)

• NPN and PNP is optional

• RS485 communication control support

• High strength EBS can be customized

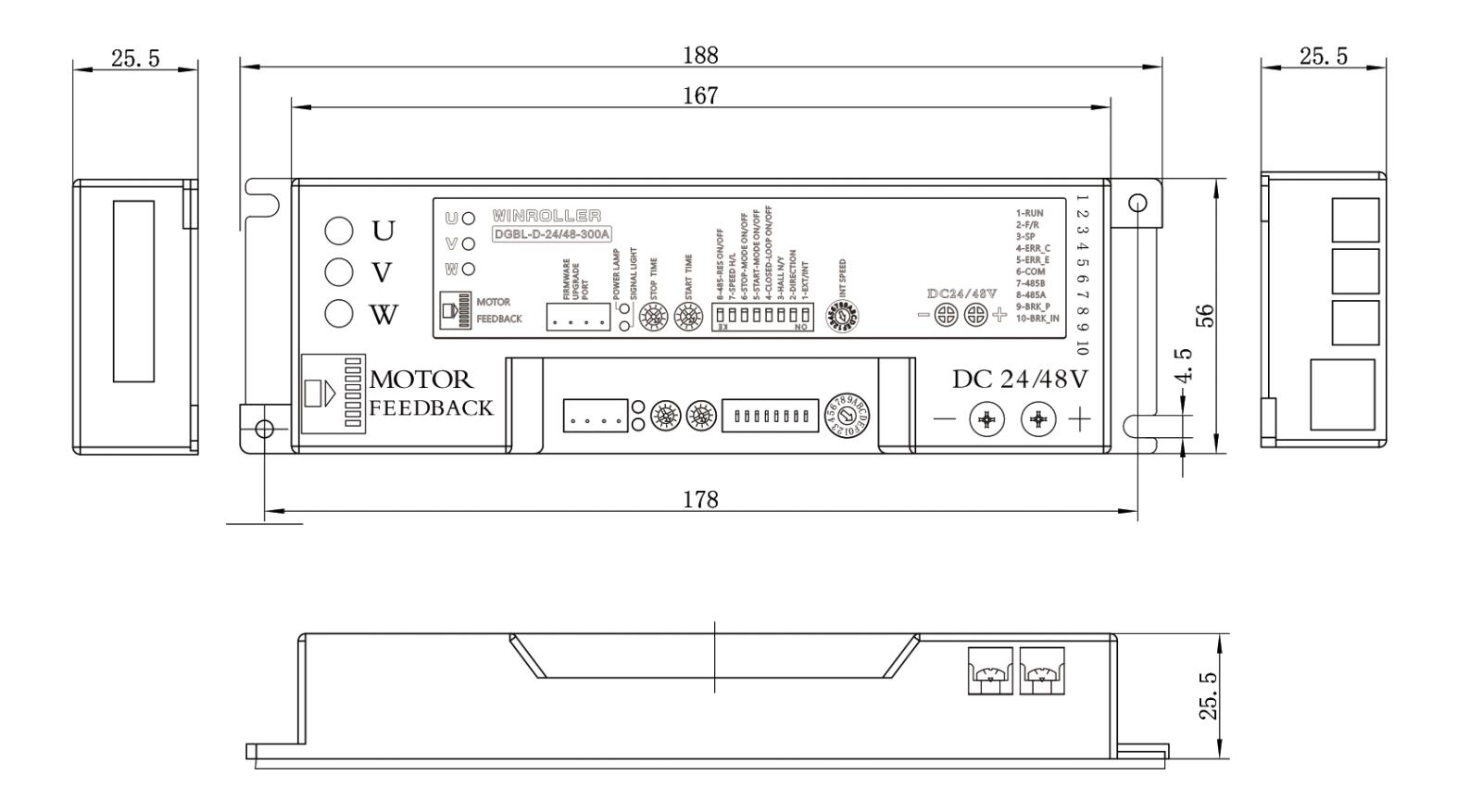

Stucture & Mounting Dimensions
