RONWIN

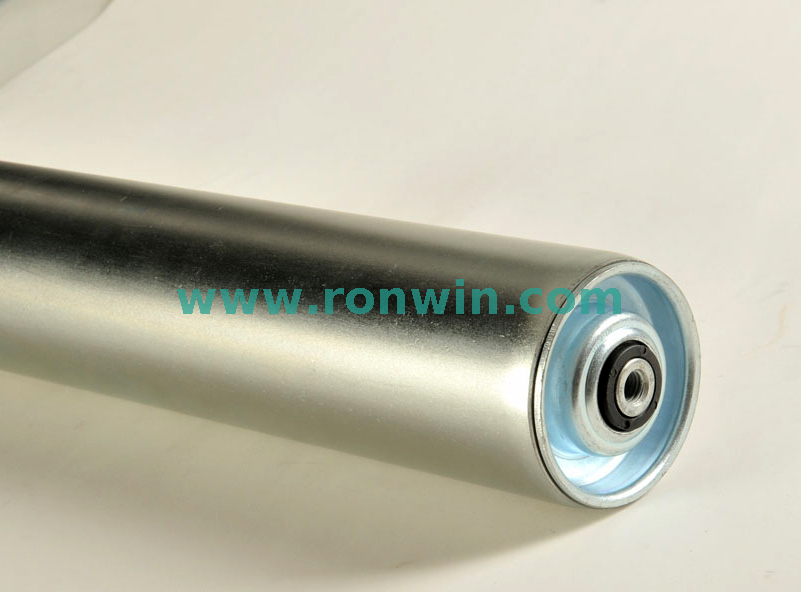

Metal Roller Bearing Assembly
This particular steel bearing assembly is appropriate for steel rollers of 50mm and 57mm in diameter. Stamp bearing housing, end cap, and precision ball bearing complete the bearing assembly.
Roller tube wall thickness and matched shaft are as belowed specifications chart.
| tube out diameter (mm) | tube wall thickness (mm) | shaft diameter (mm) | material |
| Φ50 | 1.2/1.5/2.0 | Φ12/Φ15 | carbon steel, stainless steel |
| Φ57 | 1.5/2.0/2.5 | Φ12/Φ15 | carbon steel, stainless steel |
2D Drawing
Images
Application
